  GRAIN CHILLER INSTALLATION EXAMPLE(3)

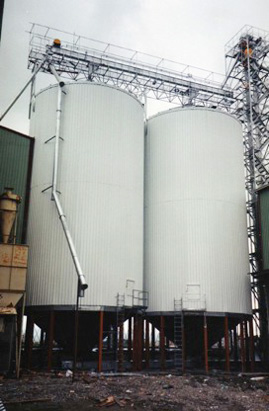

For Chilling Rice in Insulated Steel Hopper Tank（ Taiwan ）



Silo : 500 M/Ton Rice Silo × 2 sets
Insulation : 0.6mm Coating Galvanized Steel Plate
Chiller : 40RT × 1 unit, with :
•  Compressor: 40HP
•  Cold Air Fan: 20HP
•  Water Cooling Type with Cooling Tower 50RT×1
